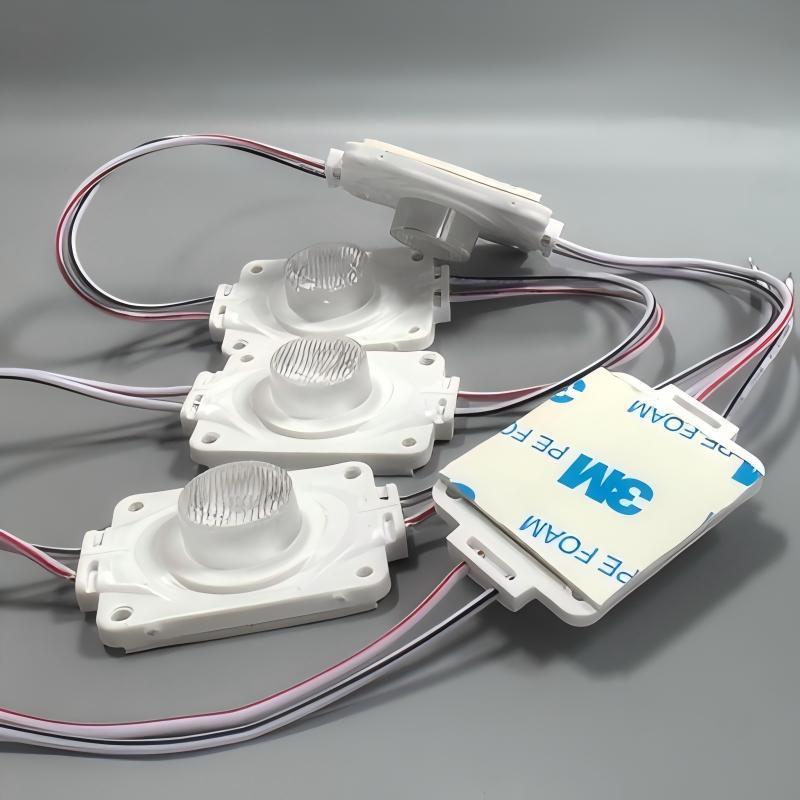

1.5W Edge Module For LED Light Boxes , 165LM Signage LED Module IP65 Rated

Product Categories

LED Backlight Module [87]
Edge Lit LED Module [13]
AC LED Module [11]
SMD LED Strip [81]
COB LED Strip [4]
AC LED Strip [10]
LED Neon Flex [14]
LED Flex Sheet [8]
LED Border Tube [1]
LED Rigid Bar [6]
LED Linear Profile Light [8]
LED Pixel Light [1]
LED Accessories [1]
LED Controller [1]
LED Power Supply [1]

Shenzhen Sign Optoelectronics Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

1.5W Edge Module For LED Light Boxes , 165LM Signage LED Module IP65 Rated

Name: 15W Edge Module For LED Light Boxes 165LM Signage LED Module IP65 Rated
Brand: SignLED
Price: 0.34 USD

China 1.5W Edge Module For LED Light Boxes , 165LM Signage LED Module IP65 Rated wholesale

Model Number : Box1.5-MFF092

Led chip : 3030

Price : 0.34-0.37USD/Piece

Brand logo : Free cost logo

Supply Ability : 50000pcs/day

Application : LED Light Boxes

Certification : CE ROHS

Warranty : 5 years/ 50000 hours

Payment Terms : T/T,Western Union,Paypal,L/C

Module Size : 45*35*14mm

MOQ : 1000pcs

Delivery Time : 5-15 working days

Led color : White 2700k-9000k

Place of Origin : ShenZhen, China

Led chain : 20pcs chain

Packaging Details : 800pcs/carton

Brand Name : SignLED

Product name : Edge LED Module

Contact Now

1.5W Edge Module 165LM IP65 15×45° for LED Light Boxes

Edge lighting solution developed for illuminated display structures
DC12V power supply ensures convenient connection with LED systems
15*45° optical design improves light spreading inside panels
IP65 rated construction supports long-term lighting applications

Product Parameters

Model No.

LED

Color

CCT (K)

Voltage

Power

Effect (LM/W)

Angle

Box1.5-MFF092

3030

White

2700~9000K

12V/24V

1.5W

165

110

15*45°

Other Colors

Connection Qty

Shell color

Drive Method

Weight (g/20pcs)

Warranty

W T(℃)

ST(℃)

IP Level

20pcs

White

Constant Voltage

325

5Years Or 50000H

-25-+60

-25+80

IP65

Product Features

Efficient LED performance provides stable brightness output
Heat dissipation structure improves product reliability
Lens design controls light direction and distribution
Protective material improves durability
Easy installation design supports different display structures

1.5W Edge Module For LED Light Boxes , 165LM Signage LED Module IP65 Rated

Led Module Applications

Edge-lit advertising displays
Light box panels
Acrylic advertising boards

1.5W Edge Module For LED Light Boxes , 165LM Signage LED Module IP65 Rated

FAQ

Q: What is the advantage of the 15×45° optical design?
A: The directional beam design helps improve edge lighting efficiency for light box applications.

Q: What type of light boxes can use this module?
A: It is suitable for edge-lit signage.

Q: What voltage does it operate on?
A: This module uses a DC12V constant voltage power supply.

Product Tags:

Edge Module For LED Light Boxes

IP65 15x45 Degree LED Module

DC12V LED Module for Light Box
