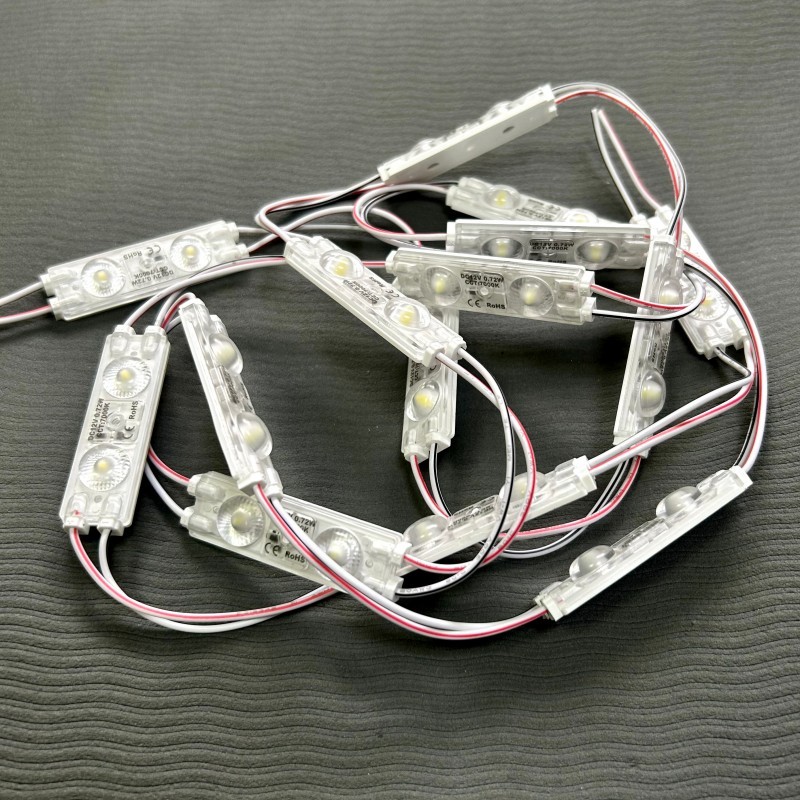

Ultra Bright Dimmable LED Module 2 LEDs 170 Degree Wide Angle For Signage Light Box

Name: Ultra Bright Dimmable LED Module 2 LEDs 170 Degree Wide Angle For Signage Light Box
Brand: SignLED
Price: 0.16 USD

China Ultra Bright Dimmable LED Module 2 LEDs 170 Degree Wide Angle For Signage Light Box wholesale

Model Number : Tino2-MFR074

Voltage : DC12V

Payment Terms : T/T,Western Union,Paypal,L/C

Dimension : 55*16*7.5mm

Price : 0.16-0.18USD/Piece

Lens : 170degrees

Supply Ability : 5000pcs/day

IP Level : IP65

Certification : CE ROHS

Led chain : 20pcs chain

MOQ : 1000pcs

Delivery Time : 5-15 working days

Led color : White

Place of Origin : ShenZhen, China

Lumen : 104LM

Packaging Details : 1000pcs/carton

Brand Name : SignLED

Product name : 0.8W led module

Contact Now

Ultra Bright LED Module 2 LEDs 170° Wide Angle Dimmable for Signage Light Box

These high-brightness LED modules feature an ultra-wide 170° beam angle, providing uniform illumination over large areas even with compact module sizes. Designed for long-term performance, they offer extremely low lumen depreciation and a lifespan of up to 50,000 hours, delivering consistent and reliable brightness over time.

Product Parameters

Model No.

LED

color

CCT (K)

voltage

power

Effect
(LM/W)

Angle

2led module

SMD2835

White

2700~6500K

DC12V

0.80

104

130

170°

7000~10000K

Connection Qty

Shell color

Drive method

Weight (g/100pcs)

Warranty

W T(℃)

S T(℃)

IP Level

20pcs

White

Constant voltage/current

750

5Years
Or 50000H

-25-+60

-25-+80

IP65

Product Feature

170° wide beam angle lens with high efficiency and excellent light uniformity
High luminous efficacy, low power consumption, and even light distribution
High color rendering index (CRI) for accurate and natural color performance
Energy-saving design with easy installation
IP65 waterproof rating for reliable indoor and outdoor use
5-year warranty for long-term quality assurance

Ultra Bright Dimmable LED Module 2 LEDs 170 Degree Wide Angle For Signage Light Box

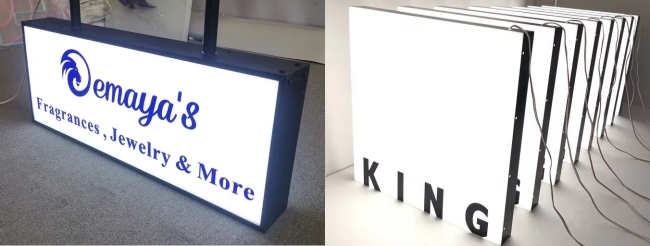

Led module Applications

Suitable for channel letters and illuminated lightbox signage with a depth range of 80–160 mm for optimal lighting performance.

Ultra Bright Dimmable LED Module 2 LEDs 170 Degree Wide Angle For Signage Light Box

Q: Can I order LED light samples?
A: Yes, we welcome sample orders for quality testing and evaluation before bulk purchase.

Q: What is the delivery time?
A: Sample orders take 3–5 days. Bulk production typically takes 5–7 days, depending on order quantity.
